i3 Tender Fenders

Description

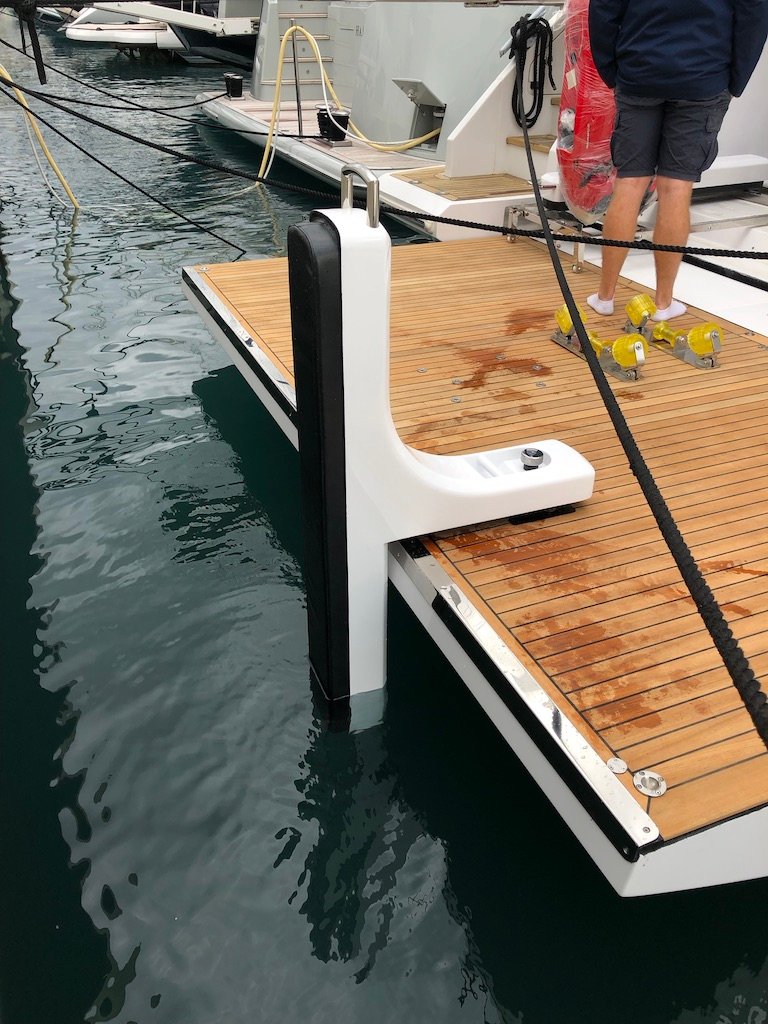

Vertical Pillar tender fenders.
These have been a popular addition to our superyacht product range in the last couple of years. The i3 Pillar tender fenders have two options. The original is with a EDPM foam bumper that is encapsulated with a hypalon cover and is mounted in a carbon fibre body.
The latest model will have an  inflatable hypalon fender with composite body.
Both versions have composite bodies that houses the same  stainless steel 316  attachment mechanism. This system has two 150mm dowel locator spigots and a M14  threaded fixing bolt to secure the fenders snug to the deck.
The overall fender body dimensions  and the composite laminate specs can be altered to suit the vessels requirements making these items semi customizable.
The standard fender weighs 20kgs and has a safe working load of 8000kgs.

Tech Specs

MAIN BODY

Carbon Fibre (Resin Infused)

WEIGHT

20kg per unit

BUMPER

Neoprene (HD)

PAINT FINISH

Cosmetic Clear Carbon or Yacht Colour

DECK ATTACHMENT

316 Stainless Steel

-

-
